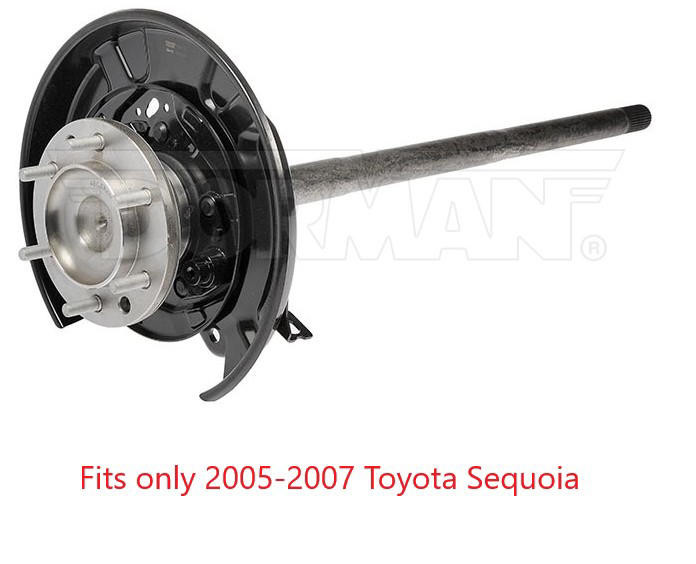

Dorman 926-177 Rear Left Passenger Axle Shaft Assembly for 05-07 Toyota Sequoia #NI091321
$496.97
Current Stock:
4
SKU:
DRM-926-177
MPN:
926-177
Condition:
New
Placement on Vehicle:
Left,Rear
Interchange Part Number:
42311-34070,42409-34010,46504-34010
Product Description
-
Replacing a worn wheel bearing usually requires a time-consuming procedure with a shop press. This Dorman OE FIX loaded axle includes all critical components already assembled for a fast, simple, safe install.
- Easier installation - this loaded axle assembly includes a pre-assembled new axle shaft, wheel bearing, hub and backing plate
- Time saver - eliminates frustrating, unpredictable work required to replace bearings without damaging other components
- Simpler solution - eliminates the need to use potentially dangerous shop press to perform complete bearing repair
- Quality tested - this part has undergone try-on, corrosion and material testing to ensure a quality fit and long service life
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2007 | Toyota | Sequoia | Rear Left | ||
| 2006 | Toyota | Sequoia | Rear Left | ||
| 2005 | Toyota | Sequoia | Rear Left |
Product Specifications
| ABS Sensor Ring Included: | Yes |
|---|---|
| Adjustable: | No |
| Axle Shaft Seal Included: | Yes |
| Brake Backing Plate Included: | Yes |
| Brake Dust Shield Included: | Yes |
| Brake Hardware Included: | No |
| Compressed Length: | 845 mm |
| Differential Case Design Type: | Semi-Float |
| Hub Bearing Included: | Yes |
| Inboard Spline Quantity: | 30 |
| Length: | 845 mm |
| Material: | Carbon Steel |
| Outboard Spline Quantity: | 30 |
| Package Contents: | 1 Axle and Bearing Assembly; 1 Axle Housing Seal; 1 Axle Housing O-ring |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rust Resistant Coating: | Yes |
| Selling Package Quantity UOM: | Piece |
| Shaft Diameter: | 33.8 mm |
| Wheel Bolt Pattern Size: | 6 Lug x 139.7 mm |
| Wheel Stud Thread Diameter: | M12 |
| Wheel Stud Thread Pitch: | 1.5 mm |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 42311-34070 | TOYOTA |
| 42409-34010 | TOYOTA |
| 46504-34010 | TOYOTA |
Warranty Information
Lifetime
