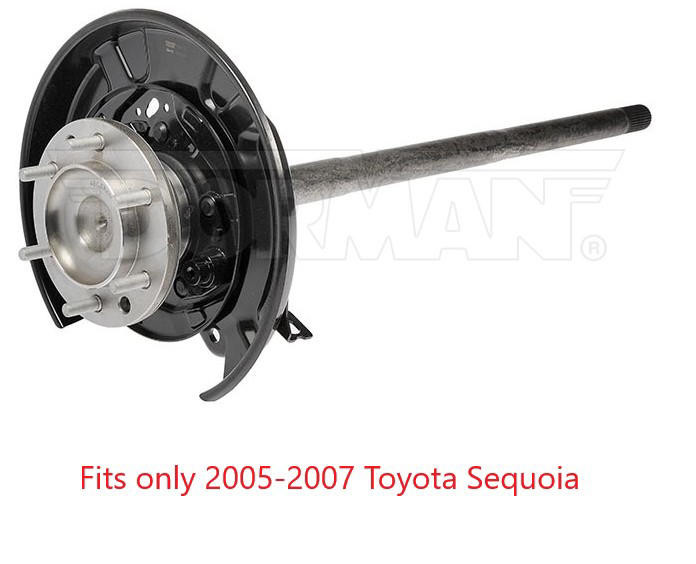

Dorman 926-176 Rear Right Passenger Axle Shaft Assembly for 05-07 Toyota Sequoia #NI031621

$496.97
Current Stock:
4
SKU:
DRM-926-176
MPN:
926-176
Condition:
New
Placement on Vehicle:
Rear,Right
Interchange Part Number:
42311-34070::42409-34010::46503-34010
Shipping:
Free Shipping
Quantity:

Product Description

Replacing a worn wheel bearing usually requires a time-consuming procedure with a shop press. This Dorman OE FIX loaded axle includes all critical components already assembled for a fast, simple, safe install.

  • Easier installation - this loaded axle assembly includes a pre-assembled new axle shaft, wheel bearing, hub and backing plate
  • Time saver - eliminates frustrating, unpredictable work required to replace bearings without damaging other components
  • Simpler solution - eliminates the need to use potentially dangerous shop press to perform complete bearing repair
  • Quality tested - this part has undergone try-on, corrosion and material testing to ensure a quality fit and long service life



Year Make Model Configuration Positions Application Notes

2007 Toyota Sequoia   Rear Right
2006 Toyota Sequoia   Rear Right
2005 Toyota Sequoia   Rear Right



Product Specifications

ABS Sensor Ring Included: Yes
Adjustable: No
Axle Shaft Seal Included: Yes
Brake Backing Plate Included: Yes
Brake Dust Shield Included: Yes
Brake Hardware Included: No
Compressed Length: 845 mm
Differential Case Design Type: Semi-Float
Hub Bearing Included: Yes
Inboard Spline Quantity: 30
Length: 845 mm
Material: Carbon Steel
Outboard Spline Quantity: 30
Package Contents: 1 Axle and Bearing Assembly; 1 Axle Housing Seal; 1 Axle Housing O-ring
Package Quantity: 1
Packaging Type: Box
Rust Resistant Coating: Yes
Selling Package Quantity UOM: Piece
Shaft Diameter: 33.8 mm
Wheel Bolt Pattern Size: 6 Lug x 139.7 mm
Wheel Stud Thread Diameter: M12
Wheel Stud Thread Pitch: 1.5 mm
Wheel Studs Included: Yes

OE Numbers

NON-DIRECT OE CROSS
42311-34070 TOYOTA
42409-34010 TOYOTA
46503-34010 TOYOTA





Warranty Information

Lifetime
