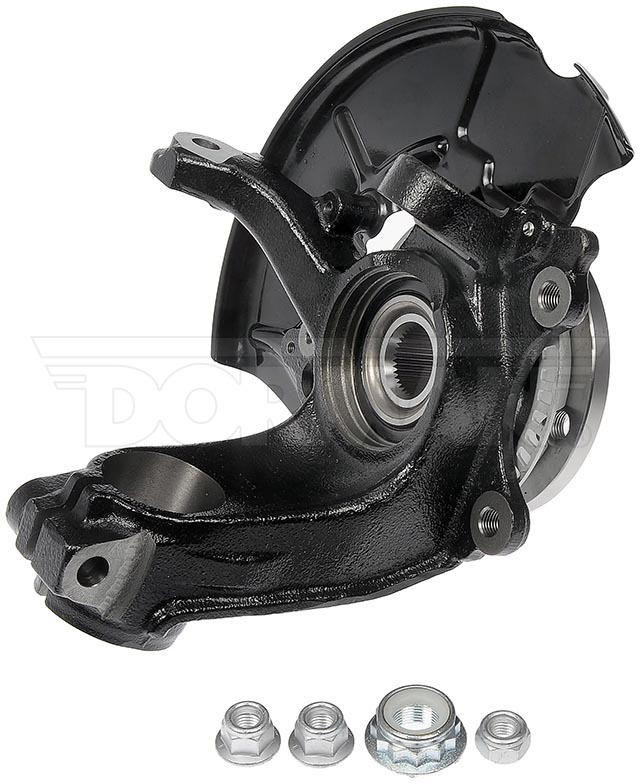

New Dorman 686-200 Front Right Loaded Knuckle Hub for 99-10 VW Beetle Golf Jetta #NI031621
$169.95
Current Stock:
4
SKU:
DRM-686-200
MPN:
686-200
Condition:
New
Placement on Vehicle:
Front,Right
Interchange Part Number:
1J0 407 613 G:: 1J0 615 312 A:: 1J0407256AH:: 1J0407256AH
Product Description
Fixing a worn wheel bearing usually requires a difficult procedure using a shop press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install.
- Pre-pressed assembly - this suspension knuckle kit includes all necessary components ready for install right out of the box
- Saves hours - eliminates work required to replace individual corroded components
- Simple solution - no need for shop press to perform complete bearing repair
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Bolt Circle Diameter: | 100 mm |
| Brake Pilot Diameter: | 65 mm |
| Connector Quantity: | 0 |
| Flange Bolt Hole Diameter: | 100 mm |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | No |
| Flange Diameter: | 126 mm |
| Flange Included: | Yes |
| Flange Offset: | 44.7 mm |
| Flange Shape: | Circular |
| Hub Pilot Diameter: | 40 mm |
| Package Contents: | 1 load Knuckle |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 36 |
| Wheel Pilot Diameter: | 57 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | M14-1.5 |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 1J0 407 613 G | VOLKSWAGEN |
| 1J0 615 312 A | VOLKSWAGEN |
| 1J0407256AH | VOLKSWAGEN |
| 1J0498625 | VOLKSWAGEN |
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2010 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2010 | Volkswagen | Beetle Cabrio (Mexico) | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2009 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2008 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2007 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2007 | Volkswagen | Golf (Mexico) | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2006 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2006 | Volkswagen | Golf | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2005 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2005 | Volkswagen | Golf | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2005 | Volkswagen | Jetta | Front Right | To 12/31/04; 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2004 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2004 | Volkswagen | Golf | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2004 | Volkswagen | Jetta | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2003 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2003 | Volkswagen | Golf | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2003 | Volkswagen | Jetta | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2002 | Volkswagen | Beetle | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2002 | Volkswagen | Golf | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2002 | Volkswagen | Jetta | Front Right | 288 mm x 25 mm Rotor; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | |
| 2001 | Volkswagen | Beetle | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2001 | Volkswagen | Golf | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2001 | Volkswagen | Golf | V6 2.8L (2771cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2001 | Volkswagen | Jetta | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2001 | Volkswagen | Jetta | V6 2.8L (2771cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2000 | Volkswagen | Beetle | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2000 | Volkswagen | Golf | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2000 | Volkswagen | Golf | V6 2.8L (2771cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2000 | Volkswagen | Jetta | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2000 | Volkswagen | Jetta | V6 2.8L (2771cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 1999 | Volkswagen | Beetle | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 1999 | Volkswagen | Jetta | L4 1.8L (1781cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 1999 | Volkswagen | Jetta | V6 2.8L (2771cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
Warranty Information
Lifetime
