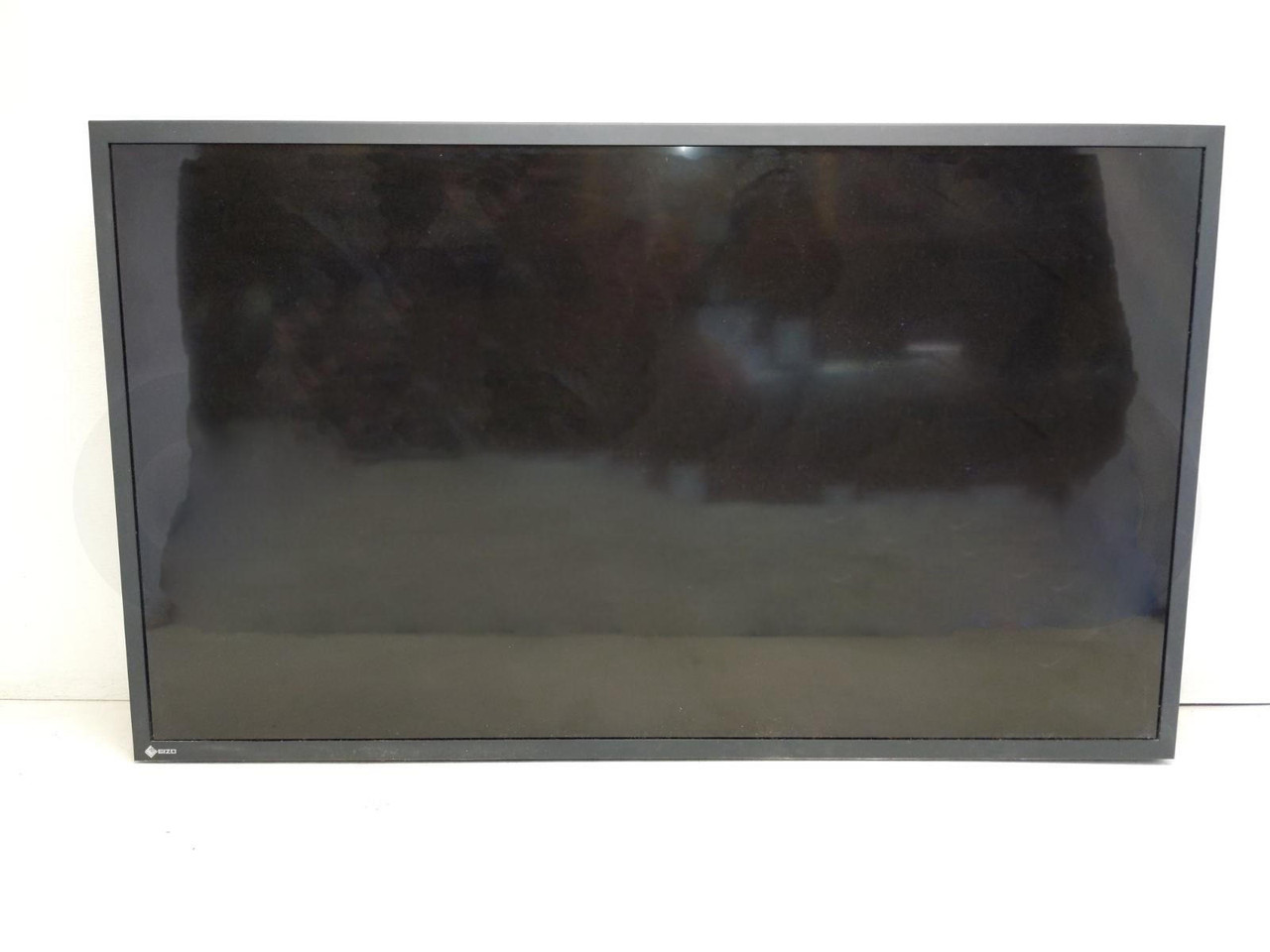

EIZO RadiForce LS580W 58" LED Lab 4K Monitor DVI #NI060723

$3,000.00
Current Stock:
SOLD OUT
SKU:
LS580W
MPN:
LS580W
Condition:
New
Color:
Black
Shipping:
Free Shipping

Out of Stock

Product Description

This item is used and in working condition. Item has scratches.



The 58 inch viewing area of LS580W enables a new dimension in imaging allowing high flexibility in arranging different screen layouts. Important pictures can be scaled to the desired size, less important information can be moved out of the focus. The LS580W supports life time luminance stability. Its tone curves match DICOM/CIE recommendations. The monitor can be mounted to ceiling suspensions and is ideal for operating rooms where multiple images need to be displayed simultaneously.



  • 58-inch LCD module with 8 megapixel (4K ultra HD) resolution.
  • Environmentally-friendly LED backlight offering a brightness of 700 cd/m².
  • Redundant components architecture for a high degree of operational reliability.
  • Factory-adjusted grayscale tones to meet DICOM Part 14 standard for optimum display of medical DICOM images.
  • 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
  • Homogeneous brightness uniformity across the entire screen.



Everything in a Single Glance

Comfortably View from Any Angle

Quick Brightness Stabilization for Instant Viewing

Diagnostic Precision with Factory Adjustment

Maintain the Precision

Ensure Continued Operation

Brightness Uniformity for Constant Brightness Across the Screen

Work Safely with Minimal Picture Delay

Keep Your Monitor Lit Longer

Installation on a VESA Ceiling Suspension



General

Cabinet Color Black
Certifications & Standards (Please contact EIZO for the latest information) CE / UKCA (Medical Device), IEC/EN60601-1, CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1, EN60601-1-2 Class B, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC, BIS
FDA Class II
Supplied Accessories (May vary by country. Please contact EIZO for details) Dual link signal cable (DVI-D - DVI-D) x 2, Utility Disk (PDF Instructions for Use)
Optional Accessories Large Monitor Manager LMM56800, LMM0802 or LMM0802-HDMI, DVI to HDMI cable, DVI to HDMI adapter, DVI Transmission Link TDL3600-QL (Quad Link), Protection Screen FPP580

Panel

Type Color TFT LCD Panel (VA)
Backlight LED
Size 146 cm / 57.5"
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 1270.1 x 721.4 mm
Pixel Pitch 0.331 x 0.334 mm
Display Colors 8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 700 cd/m²
Recommended Brightness for Calibration 350 cd/m²
Contrast Ratio (typical) 4000:1
Response Time (typical) 9.5 ms (Midtone)
Color Gamut (typical) NTSC 72%

Video Signals

Input Terminals DVI-D (dual link) x 2
Digital Scanning Frequency (H / V) 131.3 kHz / 59.7 - 60.3 Hz

Power

Power Input AC 100 - 240 V: 50 / 60 Hz
Power Consumption 350 W
Power Save Mode Less than 38 W
Power Management DVI DMPM
Power Output DC 5V, 1A (Hirose)

Features & Functions

Miscellaneous Redundant components (power supply, backlight, data transmission)
Sensor Backlight Sensor

Environmental Requirements

Degree of Protection IP20

Physical Specifications

Net Weight (without Stand) 47 kg
Hole Spacing (VESA Standard) 400 x 400 mm, M8, depth 16 - 20 mm
