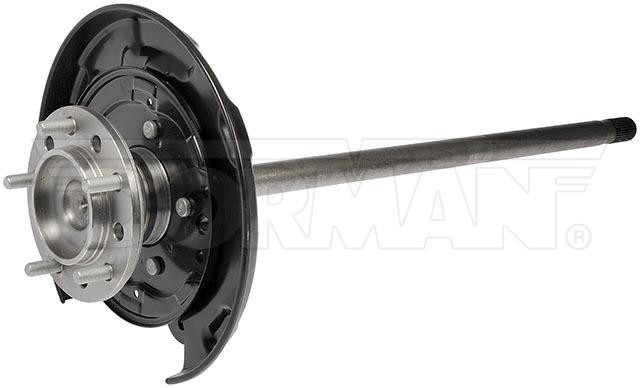

Dorman 926-143 Rear Left Driver Side Pre-Pressed Rear Axle 07-16 for Tundra #NI011022
$509.95
Current Stock:
4
SKU:
DRM-926-143
MPN:
926-143
Condition:
New
Placement on Vehicle:
Rear,Left
Interchange Part Number:
42311-0C020, 46504-0C012
Product Description
Replacing a worn wheel bearing usually requires a time-consuming procedure with a shop press. This Dorman OE FIX loaded axle includes all critical components already assembled for a fast, simple, safe install.
- Easier installation - this pre-pressed axle assembly includes a new axle shaft, wheel bearing, hub and backing plate pre-assembled and ready to install right out of the box
- Time saver - eliminates frustrating, unpredictable work required to replace bearings without damaging other components
- Simpler solution - eliminates the need to use potentially dangerous shop press to perform complete bearing repair
- Quality tested - this part has undergone try-on, corrosion and material testing to ensure a quality fit and long service life
Product Specifications
| ABS Sensor Ring Included: | Yes |
|---|---|
| Adjustable: | No |
| Axle Shaft Seal Included: | Yes |
| Brake Backing Plate Included: | Yes |
| Brake Dust Shield Included: | Yes |
| Brake Hardware Included: | No |
| Compressed Length: | 910.5 mm |
| Differential Case Design Type: | Semifloating |
| Hub Bearing Included: | Yes |
| Inboard Spline Quantity: | 32 |
| Length: | 910.5 mm |
| Material: | Carbon Steel |
| Outboard Spline Quantity: | 32 |
| Package Contents: | 1 Axle Shaft and Bearing Assembly; 1 Axle Seal; 1 Axle O-ring |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rust Resistant Coating: | Yes |
| Selling Package Quantity UOM: | Piece |
| Shaft Diameter: | 49 mm |
| Wheel Bolt Pattern Size: | 5 x 150 mm |
| Wheel Stud Thread Diameter: | M14 |
| Wheel Stud Thread Pitch: | 1.5 mm |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 42311-0C020 | TOYOTA |
| 46504-0C012 | TOYOTA |
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2016 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2015 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2014 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2014 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2013 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2013 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2012 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2012 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2011 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2011 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2010 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2010 | Toyota | Tundra | V8 4.6L (4608cc) | Rear Left | |
| 2009 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2009 | Toyota | Tundra | V8 285 4.7L (4663cc) | Rear Left | |
| 2008 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2008 | Toyota | Tundra | V8 285 4.7L (4663cc) | Rear Left | |
| 2007 | Toyota | Tundra | V6 241 4.0L (3956cc) | Rear Left | |
| 2007 | Toyota | Tundra | V8 285 4.7L (4663cc) | Rear Left |
