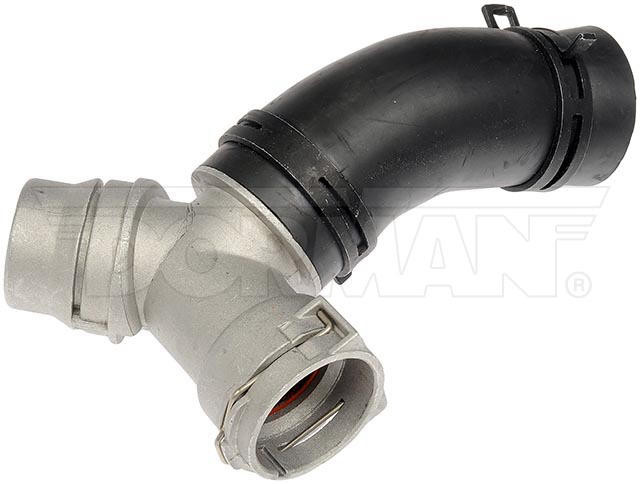

Dorman 626-541 HVAC Engine Heater Hose Assembly for 11-18 F-150 Mustang V8 5.0L #NI121420
$50.11
Current Stock:
4
SKU:
DRM-626-541
MPN:
626-541
Condition:
New
Color:
Black
Interchange Part Number:
BR3Z8566A::BR3Z8566B::DR3Z8566A::DR3Z8566B
Placement on Vehicle:
Engine Compartment
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic Y-connector. This Dorman OE FIX replacement features an upgraded aluminum Y-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum Y-connector for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2018 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2018 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2018 | Ford | Mustang | V8 315 5.2L (5163cc) | From Thermostat Housing to Water Outlet | |
| 2017 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2017 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2017 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2017 | Ford | Mustang | V8 315 5.2L (5163cc) | From Thermostat Housing to Water Outlet | |
| 2016 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2016 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2016 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2016 | Ford | Mustang | V8 315 5.2L (5163cc) | From Thermostat Housing to Water Outlet | |
| 2015 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2015 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2015 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2015 | Ford | Mustang | V8 315 5.2L (5163cc) | From Thermostat Housing to Water Outlet | |
| 2014 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2014 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2014 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2014 | Lincoln | Mark LT (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2013 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2013 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2013 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2013 | Lincoln | Mark LT (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2012 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2012 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2012 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2012 | Lincoln | Mark LT (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2011 | Ford | F-150 | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2011 | Ford | Lobo (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2011 | Ford | Mustang | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet | |
| 2011 | Lincoln | Mark LT (Mexico) | V8 302 5.0L (4951cc) | From Thermostat Housing to Water Outlet |
Product Specifications
| Branch Quantity: | 3 |
|---|---|
| Color/Finish: | Natural/No Finish |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No Heat Shield Required |
| Coolant Hose Length: | 8 In |
| Coolant Hose Material: | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included: | Not Required |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Quick Disconnect |
| End 2 Attachment Type: | Quick Disconnect |
| End 3 Attachment Type: | Hose |
| Grade Type: | Standard |
| Hose End (1) Inside Diameter (In): | 1.25 in |
| Hose End (1) Outside Diameter (In): | 1.77 in |
| Hose End (2) Inside Diameter (In): | 1.56 in |
| Hose End (2) Outside Diameter (In): | 1.8 In |
| Hose End (3) Inside Diameter (In): | 1.45 In |
| Hose End (3) Outside Diameter (In): | 1.9 In |
| Hose Shape: | Molded Assembly |
| Maximum Working Pressure (psi): | 100 PSI |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Thermostatically Controlled: | No |
| With Clamps: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| BR3Z8566A | FORD MOTOR COMPANY |
| BR3Z8566B | FORD MOTOR COMPANY |
| DR3Z8566A | FORD MOTOR COMPANY |
| DR3Z8566B | FORD MOTOR COMPANY |
Fitment
2018 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2018 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2017 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2017 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2017 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2016 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2016 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2016 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2015 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2015 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2015 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2014 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2014 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2013 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2013 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2012 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2012 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2011 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2011 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2018 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2017 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2017 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2017 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2016 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2016 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2016 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2015 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2015 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2015 Ford Mustang V8 315 5.2L (5163cc) From Thermostat Housing to Water Outlet
2014 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2014 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2013 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2013 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2012 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2012 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2011 Ford F-150 V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
2011 Ford Mustang V8 302 5.0L (4951cc) From Thermostat Housing to Water Outlet
Warranty Information
Lifetime
