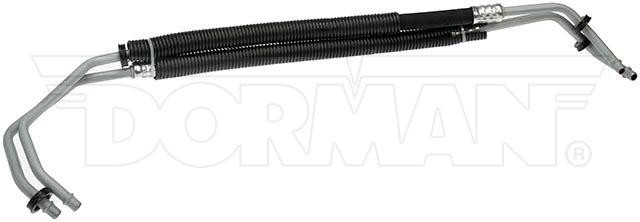

Dorman 624-284 Transmission Oil Cooler Line for 08-19 Grand Caravan Town Country #NI122320
$52.46
Current Stock:
4
SKU:
DRM-624-284
MPN:
624-284
Condition:
New
Interchange Part Number:
5005204AA::5005204AC::5005204AD::5005204AE::5005204AF::5005204AG::5005205AA::52014764AA
Product Description
This replacement automatic transmission oil cooler hose is constructed of quality metal and rubber components to ensure leak-free delivery of critical fluid between the transmission and the transmission oil cooler.
- Reliable replacement - this automatic transmission oil cooler hose is precision-engineered to replace the stock hose assembly on specific vehicles
- Quality construction - manufactured from metal and rubber with OE-style fittings to provide a reliable replacement
- Excellent value - OE quality at a lower price
- Vehicle tested - has undergone on-vehicle testing to ensure quality, proper fit and performance
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2019 | Dodge | Grand Caravan | V6 220 3.6L (3604cc) | Inlet and Outlet | |
| 2018 | Dodge | Grand Caravan | V6 220 3.6L (3604cc) | Inlet and Outlet | |
| 2017 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2016 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2016 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2016 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2015 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2015 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2015 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2015 | Ram | C/V | Inlet and Outlet | ||
| 2014 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2014 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2014 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2014 | Ram | C/V | Inlet and Outlet | ||
| 2013 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2013 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2013 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2013 | Ram | C/V | Inlet and Outlet | ||
| 2012 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2012 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2012 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2012 | Ram | C/V | Inlet and Outlet | ||
| 2011 | Chrysler | Town and Country | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2011 | Chrysler | Town and Country | V6 220 3.6L (3605cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2011 | Dodge | Grand Caravan | V6 220 3.6L (3604cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2010 | Chrysler | Town and Country | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2010 | Chrysler | Town and Country | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2010 | Dodge | Grand Caravan | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2010 | Dodge | Grand Caravan | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2009 | Chrysler | Town and Country | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2009 | Chrysler | Town and Country | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2009 | Dodge | Grand Caravan | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2009 | Dodge | Grand Caravan | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2008 | Chrysler | Town and Country | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2008 | Chrysler | Town and Country | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2008 | Dodge | Grand Caravan | V6 231 3.8L (3778cc); 6 Speed Trans. | Pressure and Return Hose | |
| 2008 | Dodge | Grand Caravan | V6 241 4.0L (3952cc); 6 Speed Trans. | Pressure and Return Hose |
Product Specifications
| Color/Finish: | Natural |
|---|---|
| Contains Spring: | No |
| End Inside Diameter: | 0.25 in |
| Fitting Included: | No |
| Flexible: | No |
| Gasket or Seal Included: | No |
| Hose Attachment End 1: | Quick Disconnect |
| Hose Attachment End 2: | Quick Disconnect |
| Hose Material: | Metal; Rubber |
| Hose Overall Length (In): | 24 in |
| Hose Shape: | Molded Assembly |
| Hose/Line Maximum Pressure (psi): | 100 PSI |
| Maximum Operating Temperature (°F): | 329 Deg. F. |
| Minimum Operating Temperature (°F): | -40 Deg. F. |
| Package Contents: | 1 Transmission Oil Cooler Inlet Line; 1 Transmission Oil Cooler Outlet Line |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 5005204AA | CHRYSLER |
| 5005204AC | CHRYSLER |
| 5005204AD | CHRYSLER |
| 5005204AE | CHRYSLER |
| 5005204AF | CHRYSLER |
| 5005204AG | CHRYSLER |
| 5005205AA | CHRYSLER |
| 52014764AA | CHRYSLER |
Fitment
2019 Dodge Grand Caravan V6 220 3.6L (3604cc) Inlet and Outlet
2018 Dodge Grand Caravan V6 220 3.6L (3604cc) Inlet and Outlet
2017 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2016 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2016 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2016 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2015 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Ram C/V Inlet and Outlet
2014 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2014 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2014 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2014 Ram C/V Inlet and Outlet
2013 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2013 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2013 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2013 Ram C/V Inlet and Outlet
2012 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2012 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2012 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2012 Ram C/V Inlet and Outlet
2011 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2011 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2011 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2010 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2010 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2010 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2010 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2009 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2009 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2009 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2009 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2008 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2008 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2008 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2008 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2018 Dodge Grand Caravan V6 220 3.6L (3604cc) Inlet and Outlet
2017 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2016 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2016 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2016 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2015 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2015 Ram C/V Inlet and Outlet
2014 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2014 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2014 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2014 Ram C/V Inlet and Outlet
2013 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2013 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2013 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2013 Ram C/V Inlet and Outlet
2012 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2012 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2012 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2012 Ram C/V Inlet and Outlet
2011 Chrysler Town and Country V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2011 Chrysler Town and Country V6 220 3.6L (3605cc); 6 Speed Trans. Pressure and Return
2011 Dodge Grand Caravan V6 220 3.6L (3604cc); 6 Speed Trans. Pressure and Return
2010 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2010 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2010 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2010 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2009 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2009 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2009 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2009 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2008 Chrysler Town and Country V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2008 Chrysler Town and Country V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
2008 Dodge Grand Caravan V6 231 3.8L (3778cc); 6 Speed Trans. Pressure and Return
2008 Dodge Grand Caravan V6 241 4.0L (3952cc); 6 Speed Trans. Pressure and Return
Warranty Information
Lifetime
