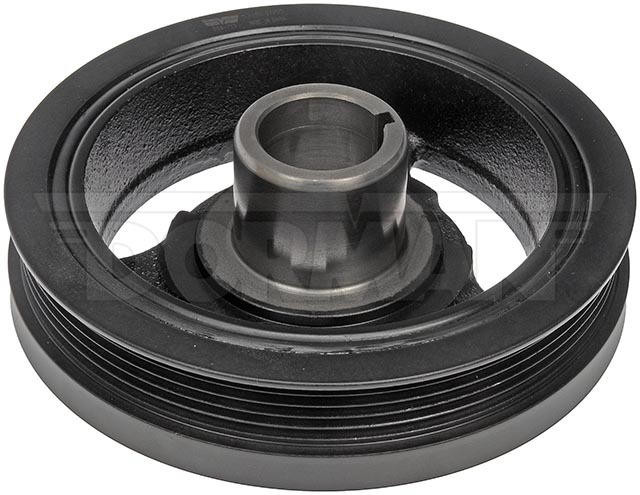

Dorman 594-713 Harmonic Balancer Assembly for 13-20 Acadia Canyon Camaro Impala #NI020321
$56.96
Current Stock:
4
SKU:
DRM-594-713
MPN:
594-713
Condition:
New
Interchange Part Number:
12626962::12657638
Product Description
This direct replacement harmonic balancer features a stress-resistant rubber bond to properly absorb engine vibration. Ductile steel construction provides excellent tensile and impact strength for greater durability.
- Ideal replacement - this harmonic balancer assembly exactly matches the fit and function of the original harmonic balancer for a direct replacement
- Durable construction - this harmonic balancer features a rubber vibration damper bonded between ductile steel components
- Cost-effective solution - this balancer assembly offers original equipment quality at a competitive price
- Quality tested - this harmonic balancer has undergone dimensional verification, material validation and functional testing to ensure performance
Product Specifications
| Center Bolt Included: | No |
|---|---|
| Color/Finish: | Black |
| Degree Markings: | No |
| Depth: | 43 mm |
| Drive Belt Type: | Serpentine |
| Grade Type: | Regular |
| Inside Diameter: | 32 mm |
| Installation Hardware Included: | No |
| Keyway Type: | Yes |
| Mount Hole Diameter: | 44.8 mm |
| Mount Hole Quantity: | 1 |
| Outside Diameter: | 163 mm |
| Package Contents: | 1 Harmonic Balancer |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pulley Groove Quantity: | 5 |
| Selling Package Quantity UOM: | Piece |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 12626962 | GENERAL MOTORS |
| 12657638 | GENERAL MOTORS |
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 2020 | Buick | Envision | L4 122 2.0L (1998cc) | ||
| 2020 | Buick | Envision | L4 153 2.5L (2457cc) | ||
| 2020 | Buick | Regal Sportback | L4 122 2.0L (1998cc) | ||
| 2020 | Buick | Regal TourX | L4 122 2.0L (1998cc) | ||
| 2020 | Chevrolet | Blazer | L4 153 2.5L (2457cc) | ||
| 2020 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | ||
| 2020 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2020 | Chevrolet | Equinox | L4 122 2.0L (1998cc) | ||
| 2020 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2020 | GMC | Acadia | L4 153 2.5L (2457cc) | ||
| 2020 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2020 | GMC | Terrain | L4 122 2.0L (1998cc) | ||
| 2019 | Buick | Envision | L4 122 2.0L (1998cc) | ||
| 2019 | Buick | Envision | L4 153 2.5L (2457cc) | ||
| 2019 | Buick | Regal Sportback | L4 122 2.0L (1998cc) | ||
| 2019 | Buick | Regal TourX | L4 122 2.0L (1998cc) | ||
| 2019 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2019 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2019 | Chevrolet | Blazer | L4 153 2.5L (2457cc) | ||
| 2019 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | ||
| 2019 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2019 | Chevrolet | Equinox | L4 122 2.0L (1998cc) | ||
| 2019 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2019 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2019 | Chevrolet | Traverse | L4 122 2.0L (1998cc) | ||
| 2019 | GMC | Acadia | L4 153 2.5L (2457cc) | ||
| 2019 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2019 | GMC | Terrain | L4 122 2.0L (1998cc) | ||
| 2018 | Buick | Envision | L4 122 2.0L (1998cc) | ||
| 2018 | Buick | Envision | L4 153 2.5L (2457cc) | ||
| 2018 | Buick | Regal Sportback | L4 122 2.0L (1998cc) | ||
| 2018 | Buick | Regal TourX | L4 122 2.0L (1998cc) | ||
| 2018 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2018 | Cadillac | CT6 | L4 122 2.0L (1998cc) | ||
| 2018 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2018 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | ||
| 2018 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2018 | Chevrolet | Equinox | L4 122 2.0L (1998cc) | ||
| 2018 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2018 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2018 | Chevrolet | Traverse | L4 122 2.0L (1998cc) | ||
| 2018 | GMC | Acadia | L4 153 2.5L (2457cc) | ||
| 2018 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2018 | GMC | Terrain | L4 122 2.0L (1998cc) | ||
| 2017 | Buick | Envision | L4 122 2.0L (1998cc) | ||
| 2017 | Buick | Envision | L4 153 2.5L (2457cc) | ||
| 2017 | Buick | Regal | L4 122 2.0L (1998cc) | ||
| 2017 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2017 | Cadillac | ATS | L4 150 2.5L (2457cc) | ||
| 2017 | Cadillac | CT6 | L4 122 2.0L (1998cc) |
| 2017 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2017 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | ||
| 2017 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2017 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2017 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2017 | GMC | Acadia | L4 153 2.5L (2457cc) | ||
| 2017 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2016 | Buick | Envision | L4 122 2.0L (1998cc) | ||
| 2016 | Buick | Regal | L4 122 2.0L (1998cc) | ||
| 2016 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2016 | Cadillac | ATS | L4 150 2.5L (2457cc) | ||
| 2016 | Cadillac | CT6 | L4 122 2.0L (1998cc) | ||
| 2016 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2016 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | ||
| 2016 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2016 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2016 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2016 | Chevrolet | Malibu Limited | L4 153 2.5L (2457cc) | ||
| 2016 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2015 | Buick | Regal | L4 122 2.0L (1998cc) | ||
| 2015 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2015 | Cadillac | ATS | L4 150 2.5L (2457cc) | ||
| 2015 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2015 | Chevrolet | Colorado | L4 153 2.5L (2457cc) | ||
| 2015 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2015 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2015 | Chevrolet | Malibu | L4 153 2.5L (2457cc) | ||
| 2015 | GMC | Canyon | L4 153 2.5L (2457cc) | ||
| 2014 | Buick | Regal | L4 122 2.0L (1998cc) | ||
| 2014 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2014 | Cadillac | ATS | L4 150 2.5L (2457cc) | ||
| 2014 | Cadillac | CTS | L4 122 2.0L (1998cc) | ||
| 2014 | Chevrolet | Impala | L4 153 2.5L (2457cc) | ||
| 2014 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2014 | Chevrolet | Malibu | L4 153 2.5L (2457cc) | ||
| 2013 | Cadillac | ATS | L4 122 2.0L (1998cc) | ||
| 2013 | Cadillac | ATS | L4 150 2.5L (2457cc) | ||
| 2013 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | ||
| 2013 | Chevrolet | Malibu | L4 153 2.5L (2457cc) |
Warranty Information
Lifetime
