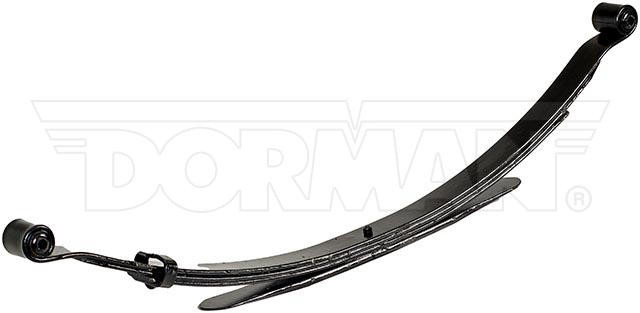

Dorman 22-525 Rear 4 Leaf Spring Assembly for 73-89 Chevy GMC Truck Van 350481 DRM-22-525
$169.93
Current Stock:
4
SKU:
DRM-22-525
Condition:
New
Placement on Vehicle:
Rear
Color:
Black
Interchange Part Number:
1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 GMC P25/P2500 Van P15/P1500 Van C15/C1500 Suburban C15/C1500 Pickup P25 P15 P2500 R1500 Chevrolet P20 Van P10 Van C10 Suburban C10 Pickup C15 P20 P2500 C1500
MPN:
22-525
Product Description
Properly functioning leaf springs hold the weight and payload of a vehicle and are essential to suspension performance and passenger comfort. Check the product details to select the right light-, medium-, or heavy-duty springs for your application.
- Direct replacement - these leaf springs are designed to match the fit and function of original equipment leaf springs in specified applications
- Ideal solution - seamlessly replaces leaf springs damaged by overloading, collision, cracking or corrosion, or are due for replacement when the vehicle sags, bounces excessively, or rides unevenly
- Durable construction - these leaf springs are made from quality materials to strict specifications to ensure reliable performance and long service life
- Trustworthy quality - engineered, manufactured and supported by the premier aftermarket leaf spring provider in the USA
Product Specifications
| Axle Modification Needed: | No |
|---|---|
| Axle Orientation: | Rear |
| Bushing Color: | Black |
| Bushings Included: | Yes |
| Color: | Black |
| End 1 Attachment Type: | Berlin Eye |
| End 2 Attachment Type: | Berlin Eye |
| Helper Spring: | No |
| Leaf Quantity: | 4 |
| Leaf Spring Arch Length: | 7.75 in |
| Leaf Width: | 2.5 in |
| Length Axis 1: | 26 in |
| Length Axis 2: | 26 in |
| Length B: | 26 in |
| Load Rate: | 1290 lb |
| Material: | Steel |
| Mounting Hardware Included: | No |
| Pack Thickness: | 1.53 in |
| Package Contents: | 1 Leaf Spring |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Spring Research Institute Number: | 22-525 |
| Suspension Grade Type: | Standard |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 350481 | GENERAL MOTORS |
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|
| 1989 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1989 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1988 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1988 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1987 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1987 | Chevrolet | R10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1987 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1987 | GMC | R1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1986 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1986 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1986 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1986 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1985 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1985 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1985 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1985 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1984 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1984 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1984 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1984 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1983 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1983 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1983 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1983 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1982 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1982 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1982 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1982 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1981 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1981 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1981 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1981 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1980 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1980 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1980 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1980 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1980 | GMC | P1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1980 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1979 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1979 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1979 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1979 | GMC | C1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1979 | GMC | P1500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1979 | GMC | P2500 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1978 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1978 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1978 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1978 | GMC | C15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1978 | GMC | P15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1978 | GMC | P25 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness |
| 1977 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1977 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1977 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1977 | GMC | C15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1977 | GMC | P15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1977 | GMC | P25 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1976 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1976 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1976 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1976 | GMC | C15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1976 | GMC | P15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1976 | GMC | P25 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1975 | Chevrolet | C10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1975 | Chevrolet | P10 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1975 | Chevrolet | P20 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1975 | GMC | C15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1975 | GMC | P15 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1975 | GMC | P25 | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1974 | Chevrolet | C10 Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1974 | Chevrolet | C10 Suburban | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1974 | Chevrolet | P10 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1974 | Chevrolet | P20 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1974 | GMC | C15/C1500 Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1974 | GMC | C15/C1500 Suburban | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1974 | GMC | P15/P1500 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1974 | GMC | P25/P2500 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1973 | Chevrolet | C10 Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1973 | Chevrolet | C10 Suburban | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1973 | Chevrolet | P10 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1973 | Chevrolet | P20 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1973 | GMC | C15/C1500 Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1973 | GMC | C15/C1500 Suburban | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness; w/52 In. Spring Length | |
| 1973 | GMC | P15/P1500 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness | |
| 1973 | GMC | P25/P2500 Van | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1,290 Lb. Average Capacity; 1.50 In. Pack Thickness |
